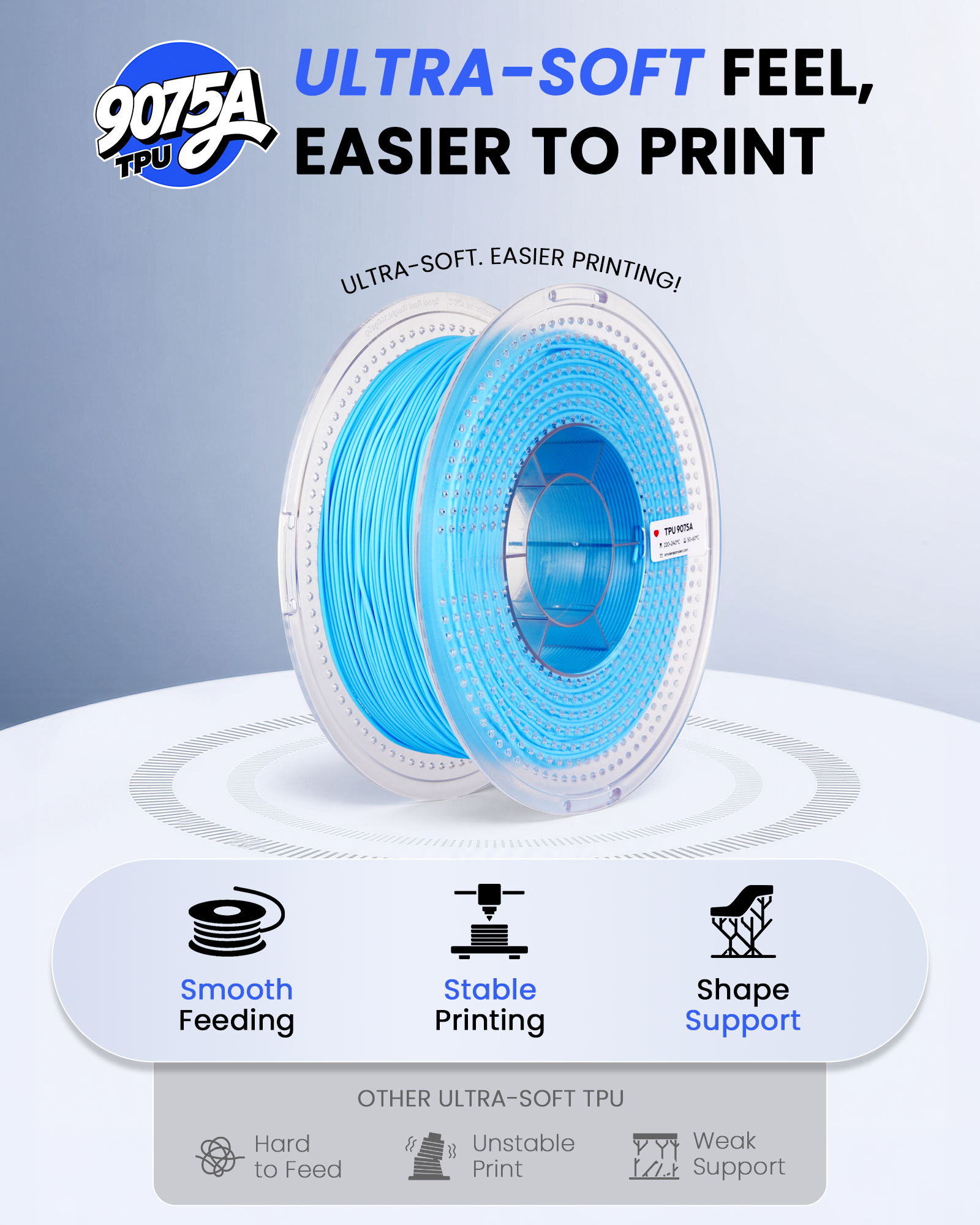

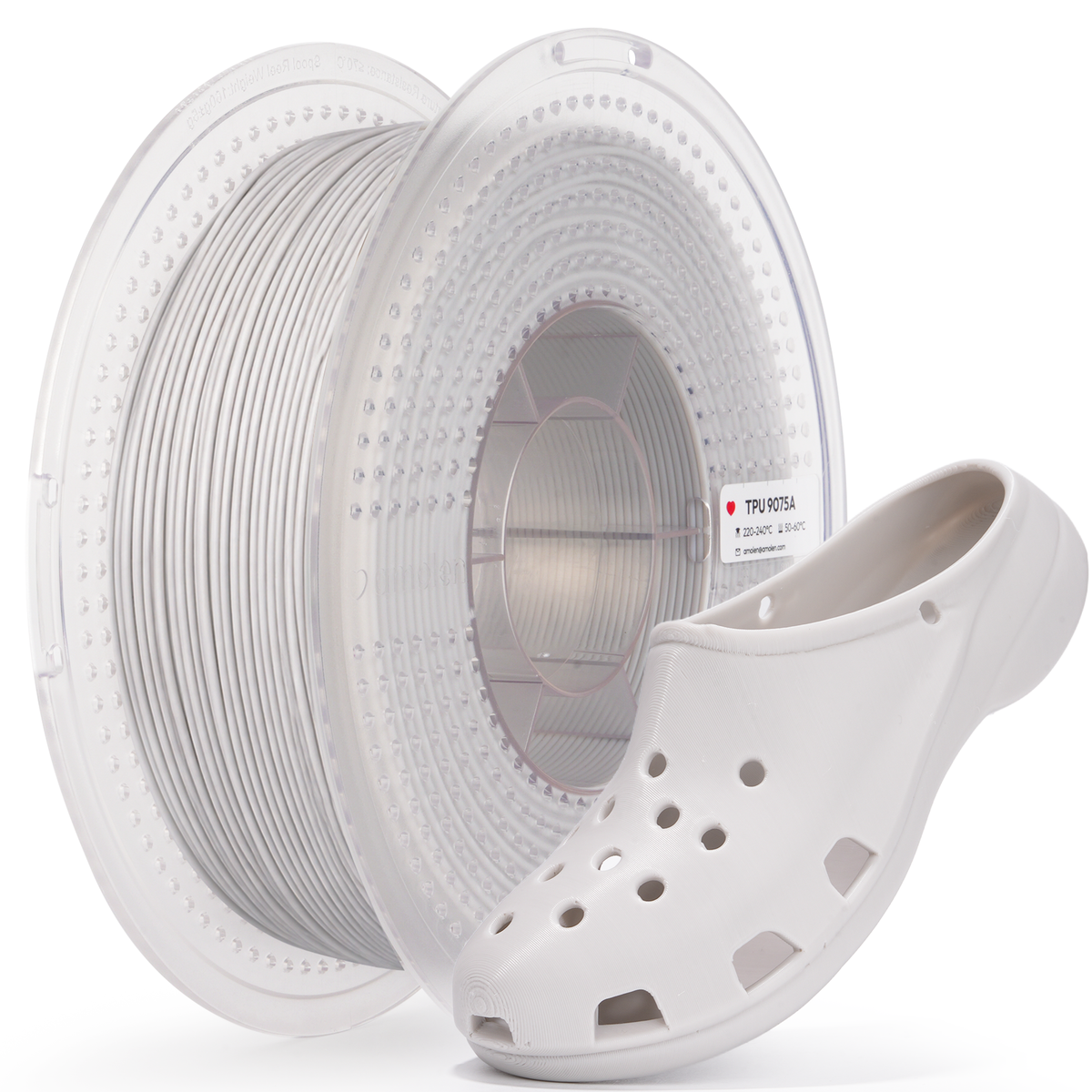

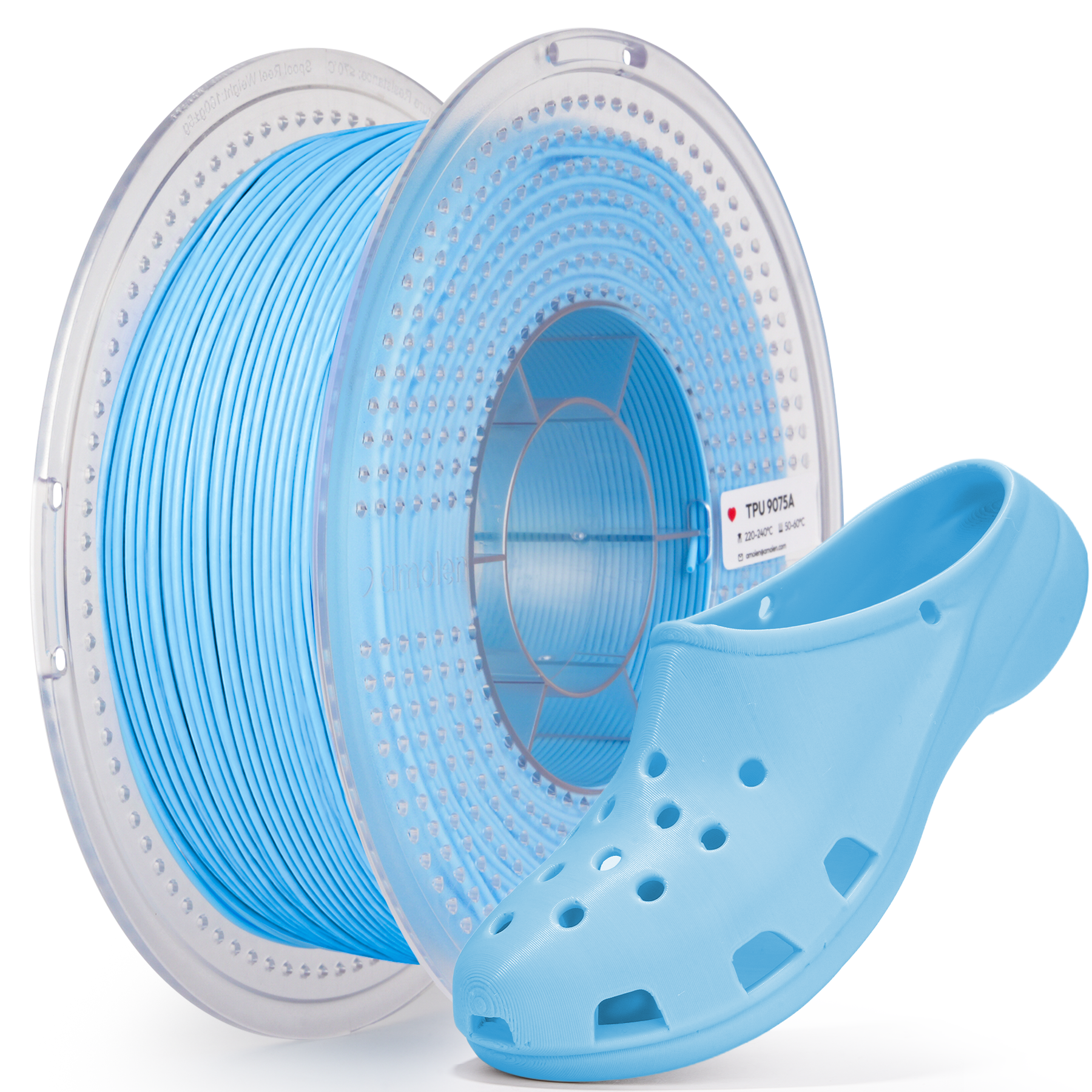

TPU Basic 9075A Filament 1.75mm, 800G

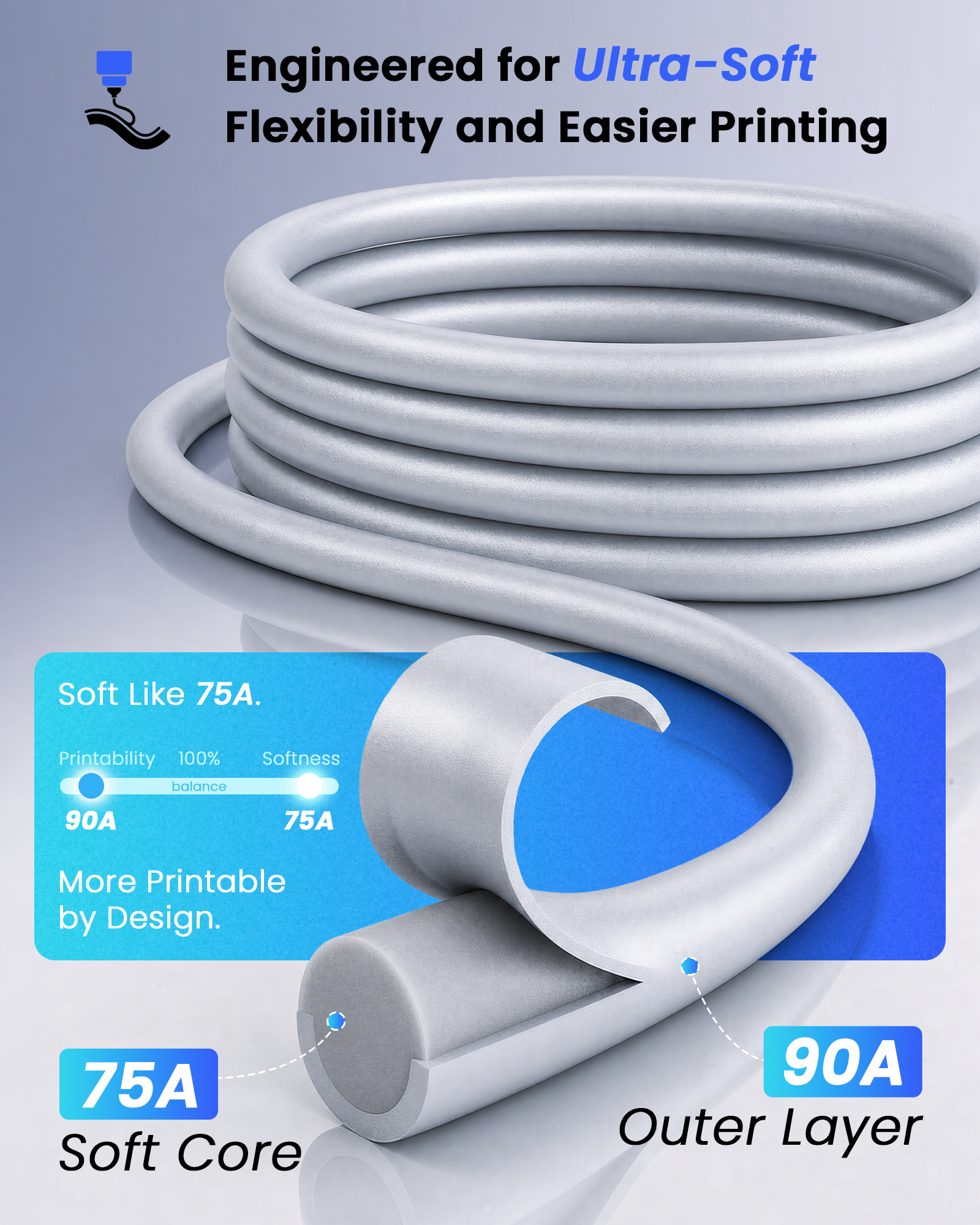

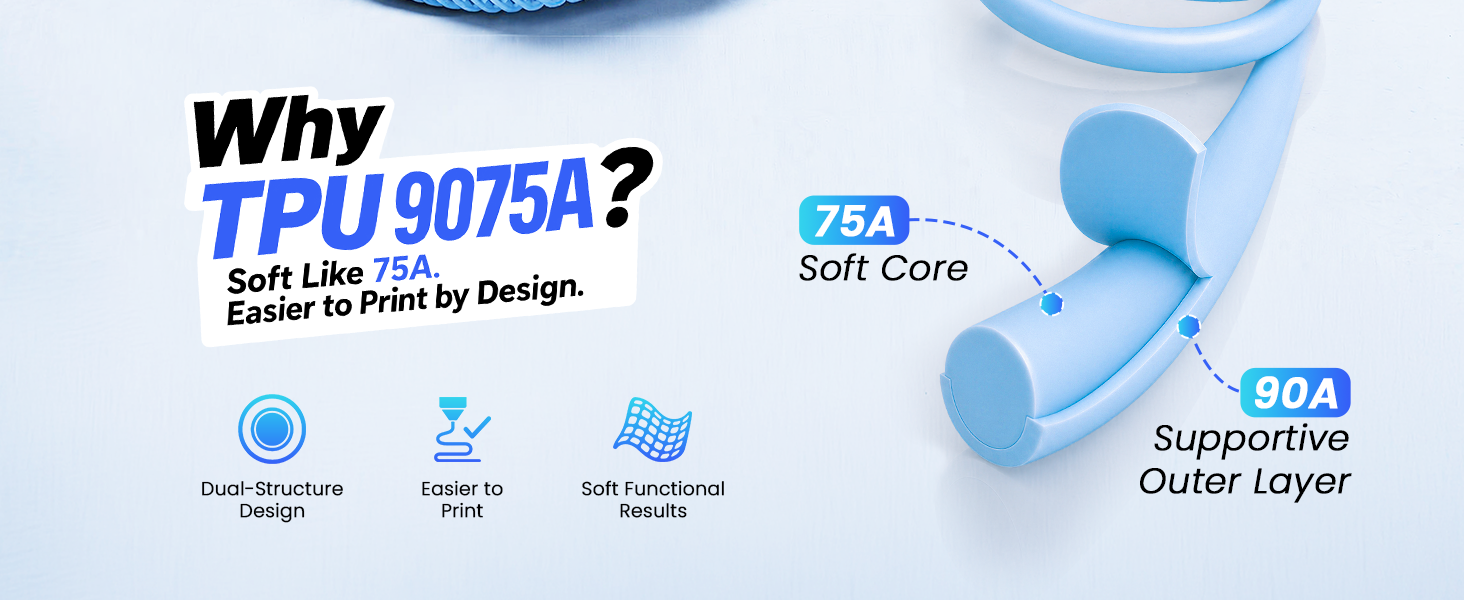

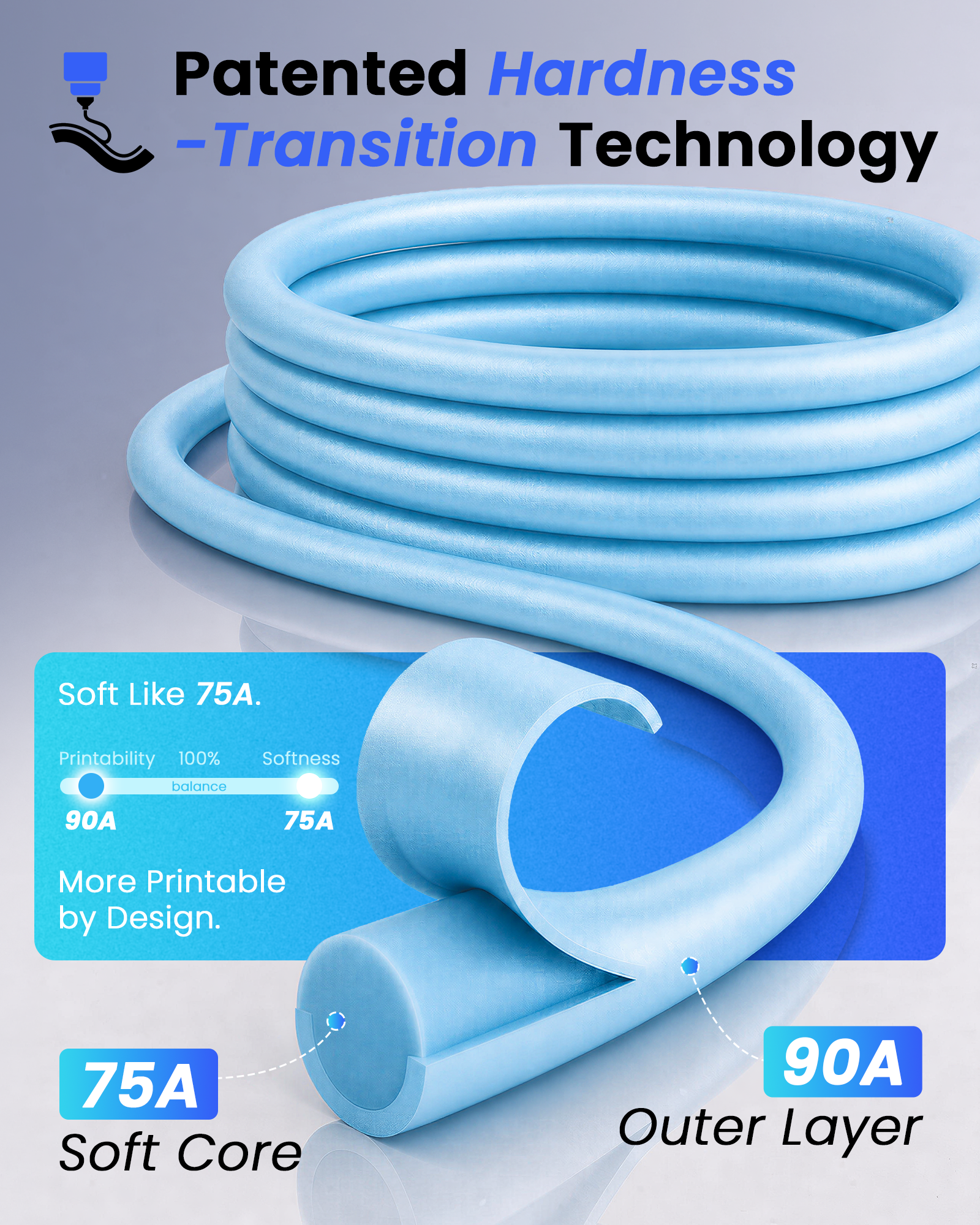

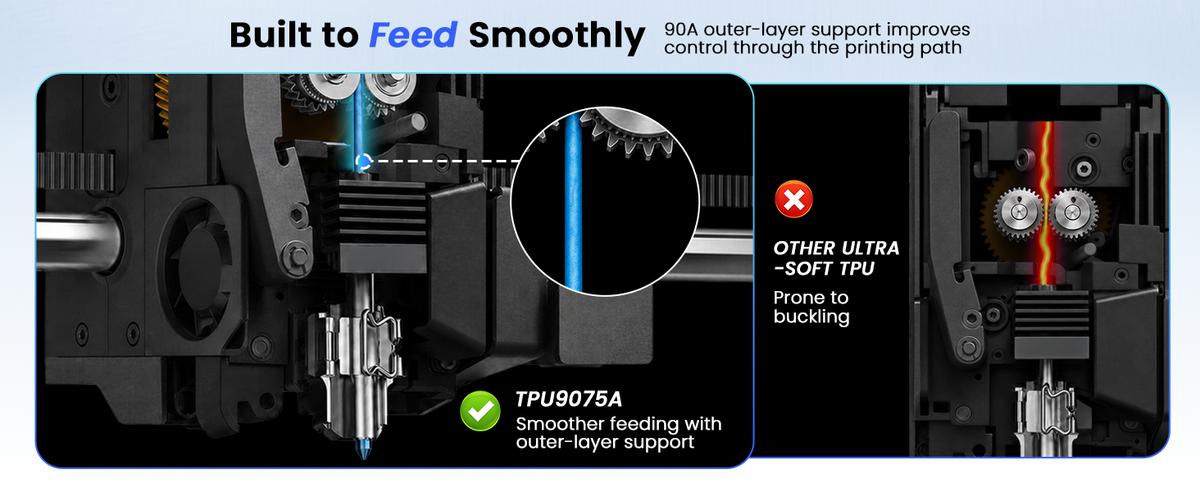

Dual-Structure Design: Soft 75A core with a supportive 90A outer layer.

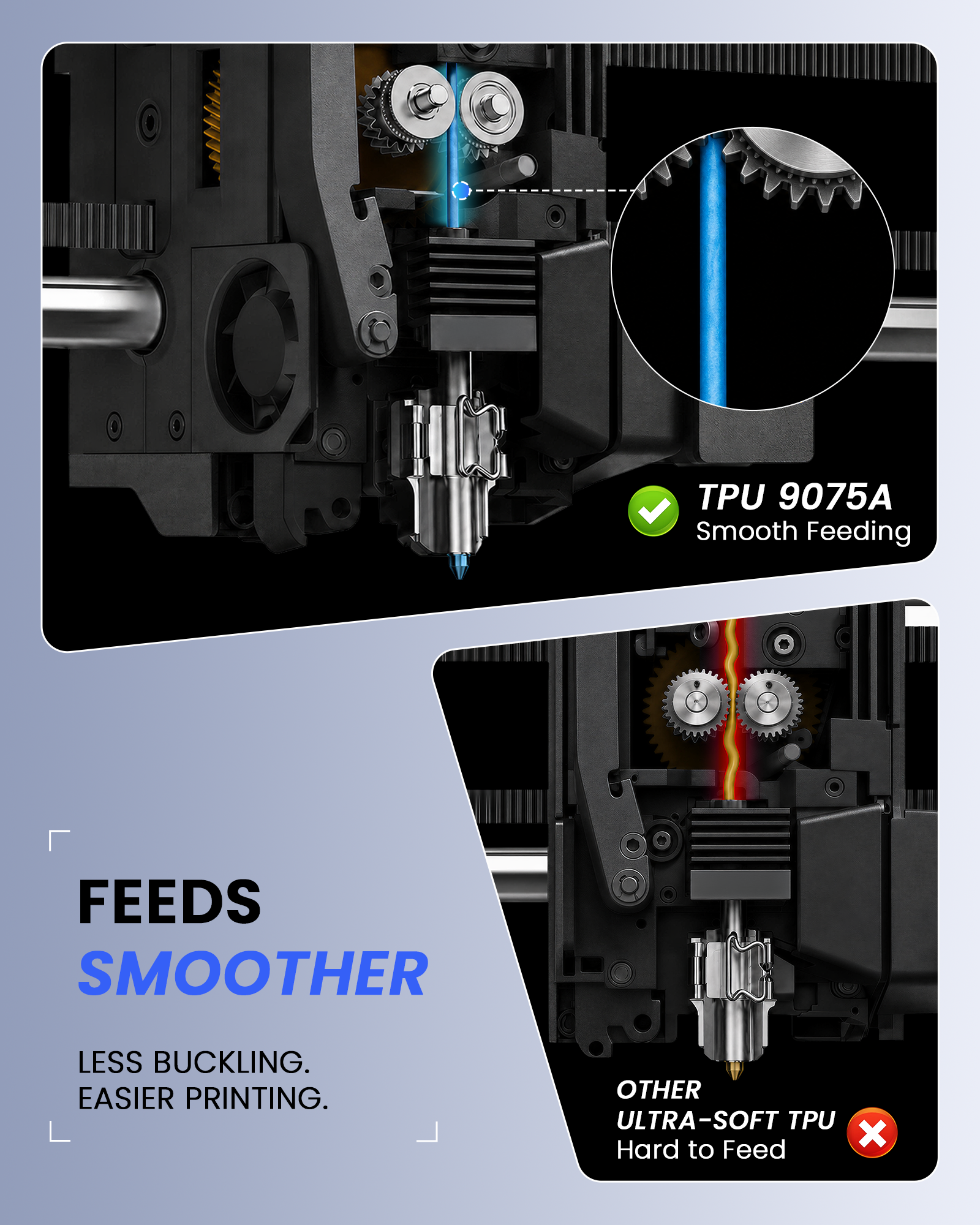

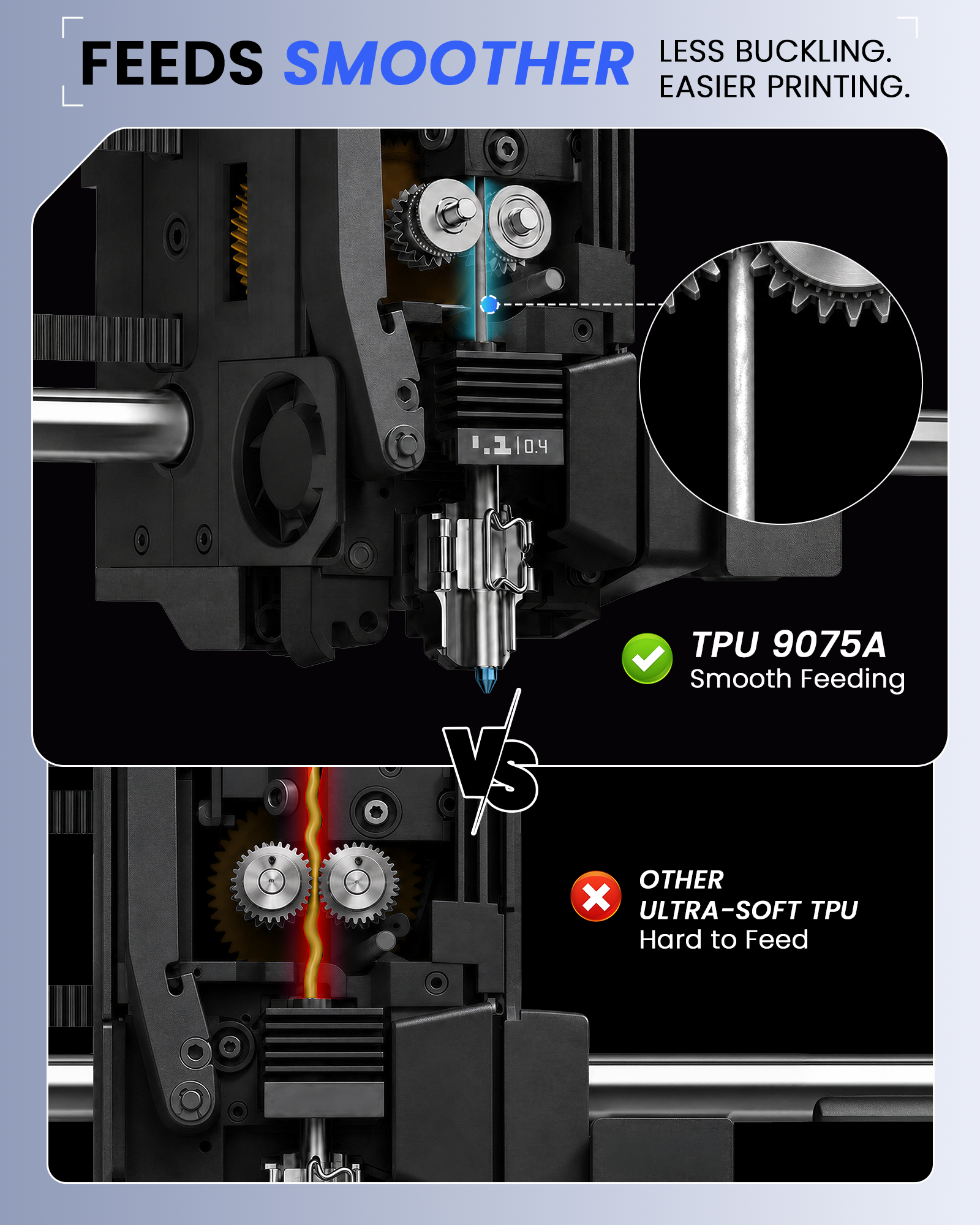

Soft & Easy to Print: Ultra-flexible with smoother and more stable feeding.

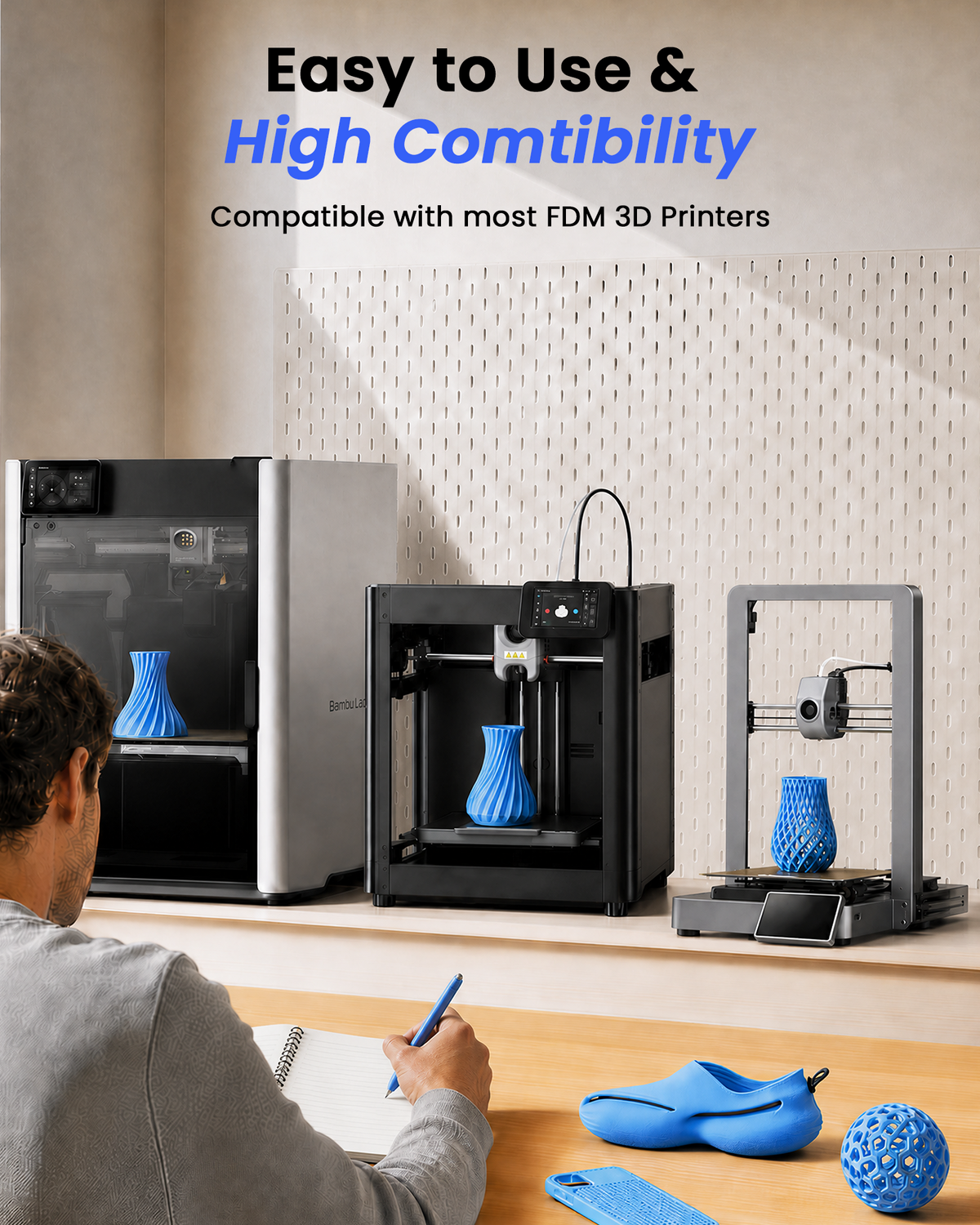

Broad Printer Compatibility: Works with most FDM 3D printers; direct-drive extrusion is recommended.

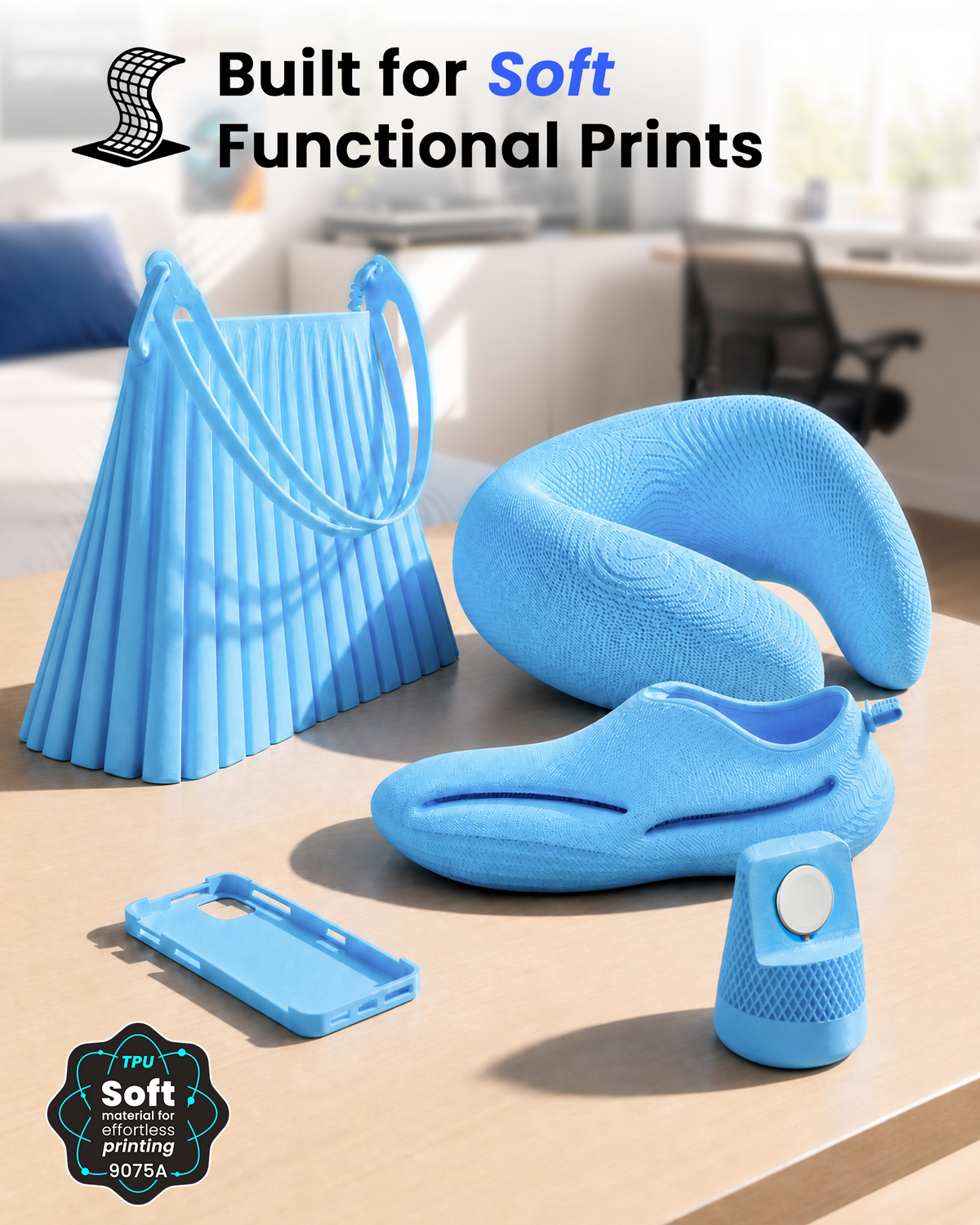

Durable & Versatile: Ideal for phone cases, wearables, grips, seals, and flexible functional parts.
Recommended Printing Settings: Nozzle 220–240°C; bed 35–60°C; nozzle size 0.4–0.6 mm.

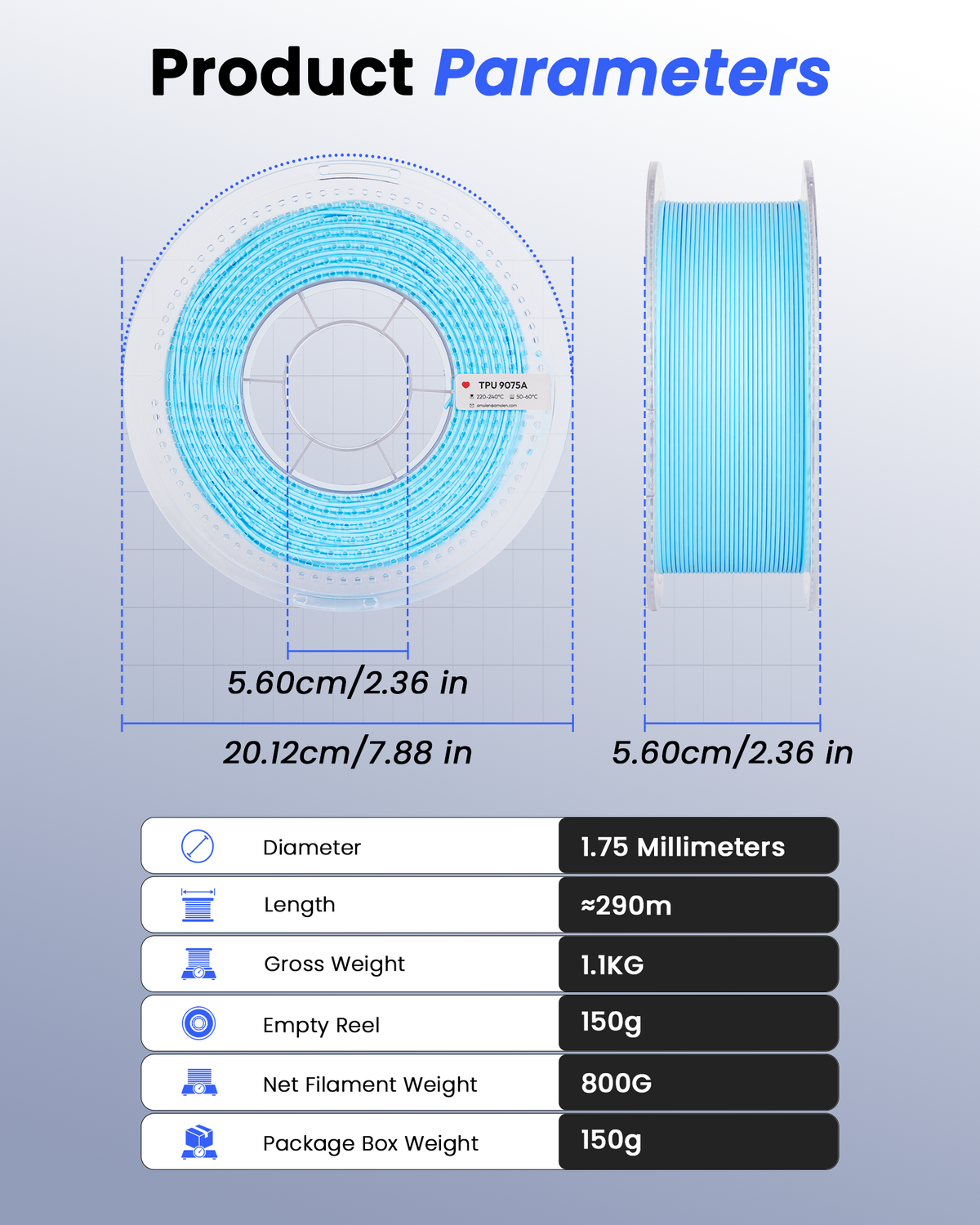

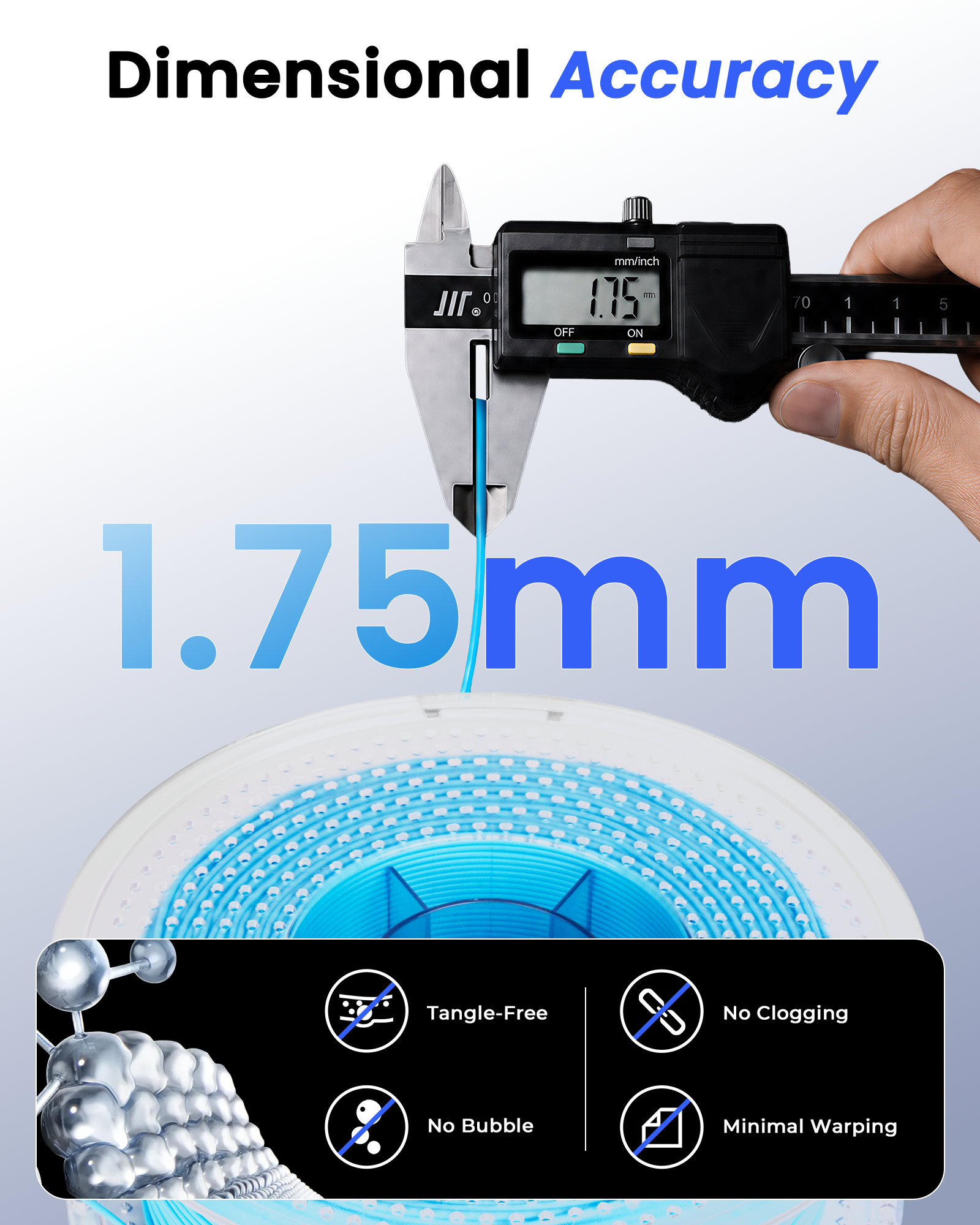

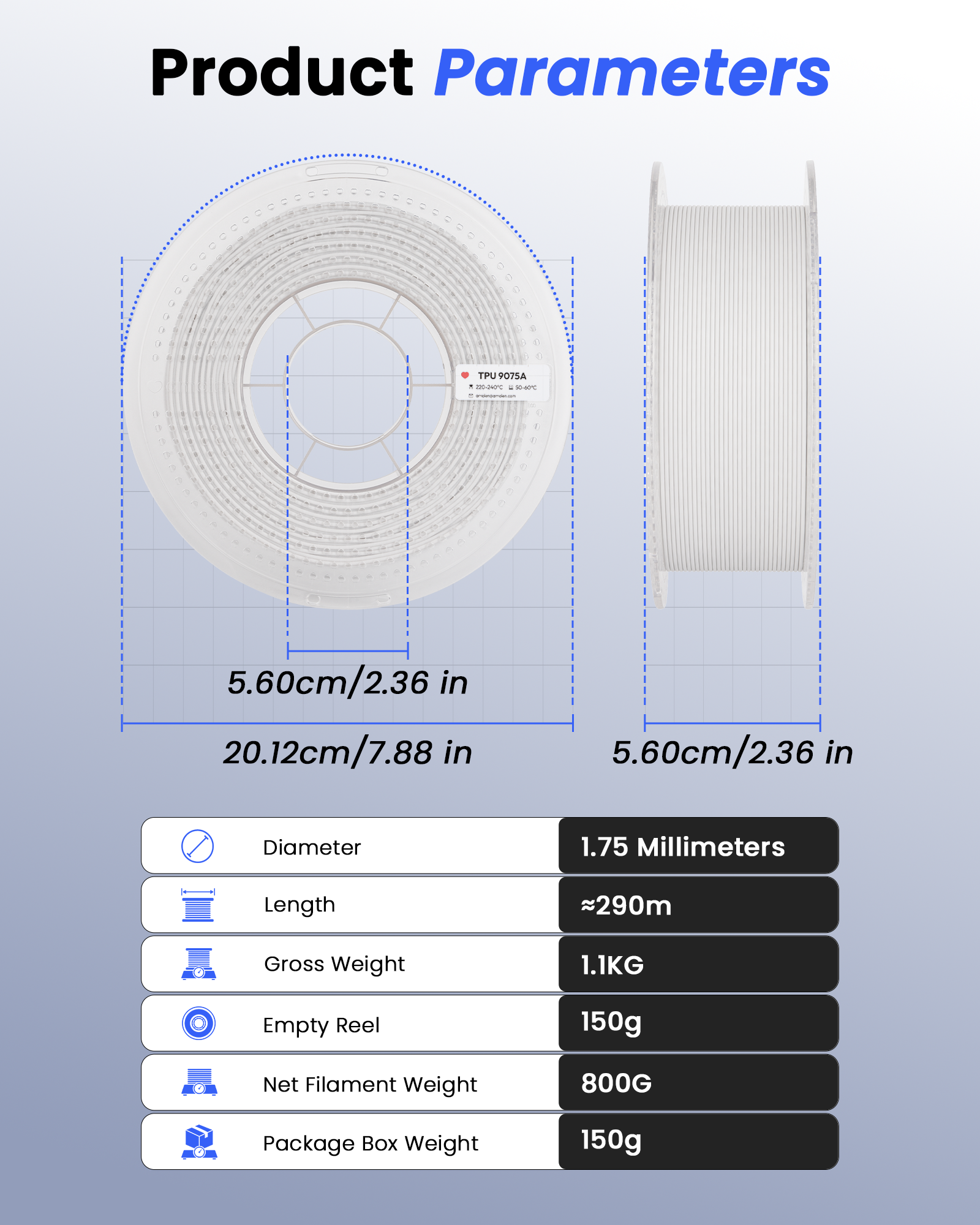

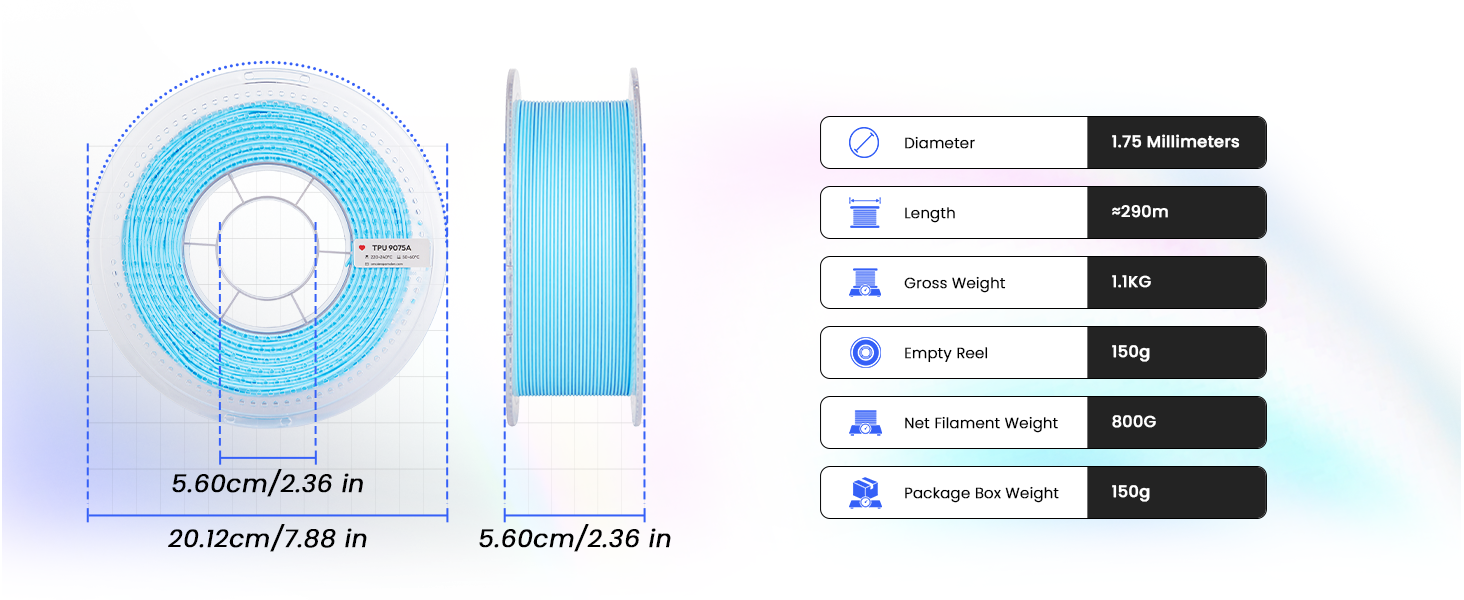

Product Specifications: 1.75 mm filament diameter; 800 g spool.
TPU Flexible
Soft Like 75A. Easier to Print by Design.

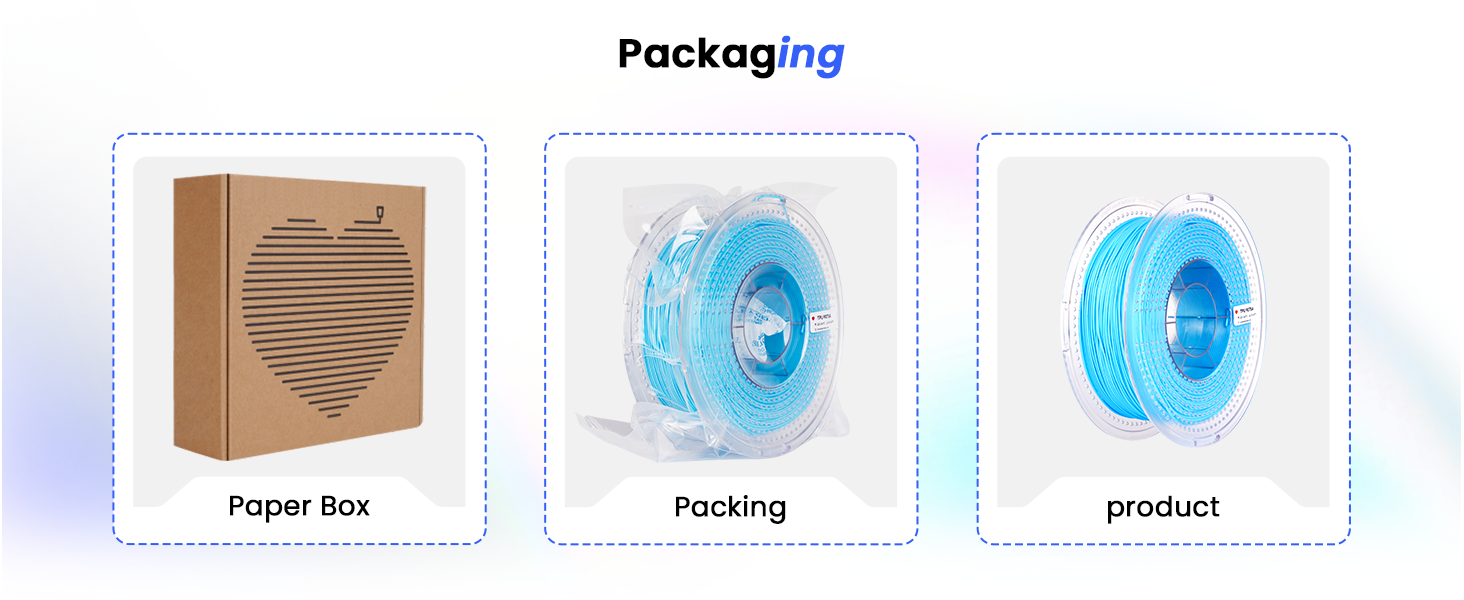

Included in the box
Specifications

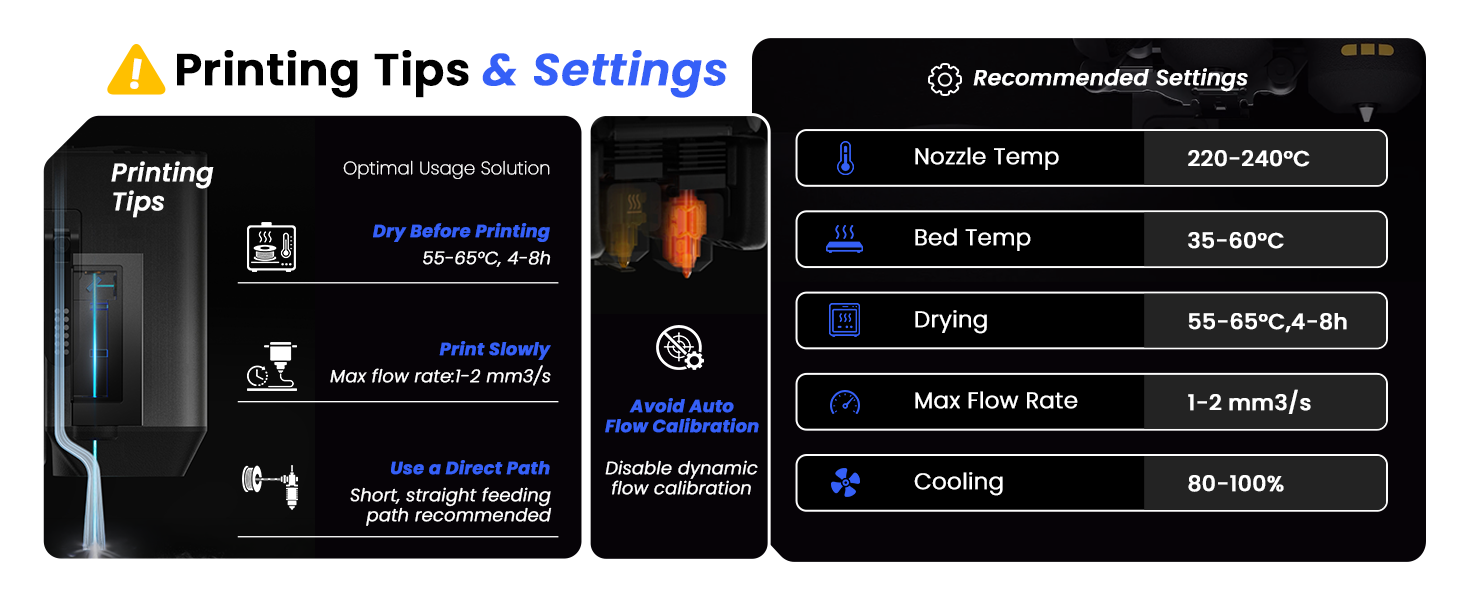

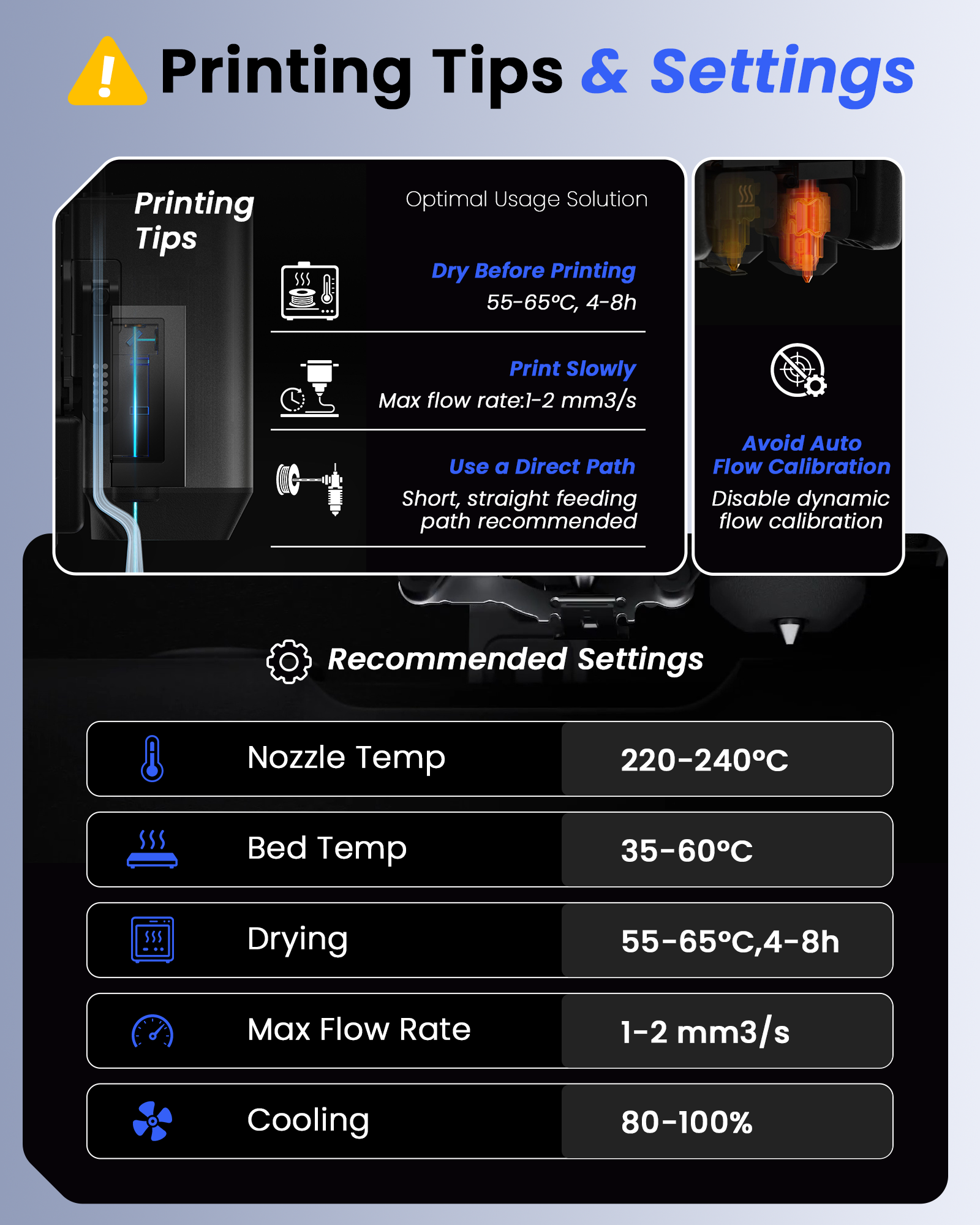

Recommended Printing Settings
• Drying Settings: 55 ± 5 °C for 6–8 hours
• Bed Temperature (Varies by Printer and Plate Types): 30–65°C
• Printing Humidity: < 20% RH (sealed with desiccant recommended)
• Nozzle Temperature: 220-240℃
• Bed Surface Compatibility: PEI, glass bed, textured surface, with or without glue
• Printing Speed: < 60 mm/s
• Retraction Settings: 0.5 – 1.0 mm @ 20–30 mm/s
• Cooling Fan: On
Physical Properties
• Density: 1.19 ± 0.02 g/cm³
• Melt Index: 6 ± 1.5 g/10 min @ 210 °C, 2.16 kg
• Melting Temperature: 175 – 180 °C
• Glass Transition Temperature: -30 °C (typical TPU)
• Vicat Softening Temperature: 85 – 90 °C
• Heat Deflection Temperature: 60 – 65 °C (at 0.45 MPa)
Mechanical Properties (XY Axis Values)
• Tensile Strength: 45 ± 5 MPa
• Elongation at Break: 350 ± 30 %
• Flexural Modulus: 90 ± 10 MPa
• Flexural Strength: 35 ± 4 MPa
• Impact Strength (unnotched, XY): 100 ± 10 kJ/m²
• Drying Settings: 55 ± 5 °C for 6–8 hours
• Bed Temperature (Varies by Printer and Plate Types): 30–65°C
• Printing Humidity: < 20% RH (sealed with desiccant recommended)
• Nozzle Temperature: 220-240℃
• Bed Surface Compatibility: PEI, glass bed, textured surface, with or without glue
• Printing Speed: < 60 mm/s
• Retraction Settings: 0.5 – 1.0 mm @ 20–30 mm/s
• Cooling Fan: On
• Density: 1.19 ± 0.02 g/cm³
• Melt Index: 6 ± 1.5 g/10 min @ 210 °C, 2.16 kg
• Melting Temperature: 175 – 180 °C
• Glass Transition Temperature: -30 °C (typical TPU)
• Vicat Softening Temperature: 85 – 90 °C
• Heat Deflection Temperature: 60 – 65 °C (at 0.45 MPa)
• Tensile Strength: 45 ± 5 MPa
• Elongation at Break: 350 ± 30 %
• Flexural Modulus: 90 ± 10 MPa
• Flexural Strength: 35 ± 4 MPa
• Impact Strength (unnotched, XY): 100 ± 10 kJ/m²
Other Information
• Odor: Low odor during printing
• Composition: 100% TPU (Thermoplastic Polyurethane), made from virgin-grade raw material
• Shore Hardness: 95A ± 2
• Certifications: RoHS, REACH, EN71 compliant
• Storage: Store in cool, dry conditions; reseal with desiccant when not in use
• Shelf Life: 12–18 months in sealed condition
• Biodegradability: Not biodegradable
Testing Conditions Note
All mechanical properties were measured using specimens printed in the XY direction at 100% infill, with a 0.4mm nozzle, dried at 55°C for 6 hours prior to testing. No annealing was applied.
Disclaimer
The values provided represent typical results from internal testing under standard conditions. Variations may occur depending on printer, model design, slicing parameters, and environmental factors. These values are for reference only and do not constitute a performance guarantee.
• Odor: Low odor during printing
• Composition: 100% TPU (Thermoplastic Polyurethane), made from virgin-grade raw material
• Shore Hardness: 95A ± 2
• Certifications: RoHS, REACH, EN71 compliant
• Storage: Store in cool, dry conditions; reseal with desiccant when not in use
• Shelf Life: 12–18 months in sealed condition
• Biodegradability: Not biodegradable
All mechanical properties were measured using specimens printed in the XY direction at 100% infill, with a 0.4mm nozzle, dried at 55°C for 6 hours prior to testing. No annealing was applied.
The values provided represent typical results from internal testing under standard conditions. Variations may occur depending on printer, model design, slicing parameters, and environmental factors. These values are for reference only and do not constitute a performance guarantee.
